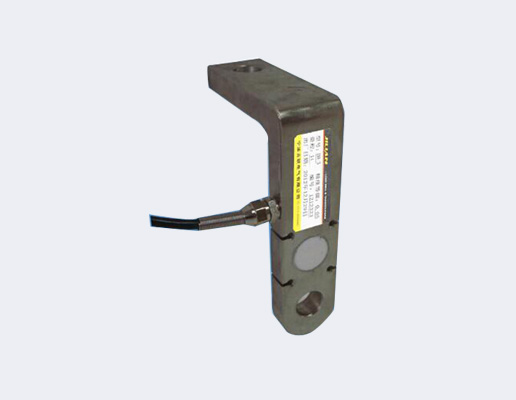

型号：JL-BH-4
额定载荷Rated Load | 5t |
额定输出Rated Output | 2.0000±0.001MV/V |
综合误差Total Error | ±0.03%F.S |
推荐工作电压Recommended Excitation Voltage | 5V～12V(DC) |
最大工作电压Maximum Excitation Voltage | 15V(DC) |
零点平衡Zero Balance | ±1%F.S |
输入阻抗Input Impedance | 380±5Ω |
输出阻抗Output Impedance | 350±2Ω |
绝缘阻抗Insulation Impedance | ≥5000MΩ |
安全过载率Safe Overload | 150%F.S |
极限过载率Ultimate Overload | 200%F.S |
工作作温度范围Operating Temperature Range | (-30～+70)℃ |
温度补偿范围Compensated Temperature Range | (-20～+60)℃ |
输出温度影响Temperature Effect On Load | ±0.03%F.S/10℃ |
零点温度影响Temperature Effect On Zero | ±0.03%F.S/10℃ |
材质Construction | 合金钢Alloy Steel 铝合金Aluminium |
防护等级Protection Class | IP68&IP67 |
引用标准Citation | GB/T7551-2008/OIML R60 |
接线方式Mode of Connection | 输入+:红 Input+:Red
|
